Lost Foam Casting White Part Machine | Automatic EPS Foam Pattern Maker for Foundry
Product Introduction
A reliable lost foam casting white part machine is the core upfront equipment for every stable lost foam casting workshop. As a professional foundry equipment exporter with rich overseas project experience, we design and manufacture fully automatic EPS foam pattern machines dedicated to producing high-quality foam white parts, the indispensable expendable patterns for lost foam metal casting.
Many foundry owners struggle with inconsistent foam pattern size, low daily production capacity and high manual cost when using outdated semi-automatic foam making devices. Our lost foam casting white part machine solves these industry pain points perfectly. It covers full-process automatic production including vacuum EPS bead feeding, steam mould expansion, circulating water cooling and automatic demoulding, requiring minimal manual intervention throughout operation.
This foam pattern machine has been shipped to casting factories across Europe, Southeast Asia, the Middle East and Latin America, winning steady feedback from long-term cooperative buyers.
How Does Our Lost Foam White Part Machine Work?
Working based on mature EPS secondary steam expansion technology, this lost foam casting white part machine runs in a closed and stable working cycle. Qualified EPS raw beads are sucked into precision metal moulds via vacuum feeding system without material leakage. After uniform steam heating inside sealed moulds, polystyrene beads expand fully to fill every tiny corner of mould cavities, ensuring complete pattern shaping. Afterwards, circulating cooling water stabilizes the foam structure to avoid pattern deformation or collapse. Finished foam white parts will be pushed out automatically, ready for subsequent coating, drying and pouring procedures in lost foam casting lines.
Machine Highlights & Competitive Edges
-
Consistent foam white part quality: Uniform foam density across all finished patterns, smooth surface finish and tight dimensional tolerance. No common defects like pattern shrinkage, local collapse or warpage. Well-made white parts greatly reduce casting defects including air holes, sand holes and burrs during metal pouring, improving final casting yield effectively.
-
Lower manpower input for foundries: Integrated automatic workflow cuts down manual operation largely. One single operator can supervise the whole machine running smoothly, helping casting plants cut long-term labor expenditure compared with traditional manual foam making equipment.
-
Custom mould service for personalized casting needs: We support custom mould processing according to buyers’ actual casting drawings. No matter regular or irregular workpiece shapes, our lost foam casting white part machine can produce matched foam patterns to fit diversified lost foam casting production demands.
-
Cost-saving daily operation & long service life: Optimized internal steam pipeline design lowers steam consumption during moulding, bringing obvious energy saving for daily mass production. Heavy-duty thickened steel frame adapts to long-time high-temperature and high-pressure working conditions, reducing frequent maintenance and replacement costs.
-
Seamless connection with full lost foam casting line: This standalone white part making machine can match perfectly with supporting equipment such as foam coating machines, pattern drying rooms, sand reclamation systems and pouring stations. We can provide matched layout design to build a complete turnkey lost foam casting production line for your factory.
Common Production Applications
Our lost foam casting white part machine fits mass production of foam patterns for various ferrous and non-ferrous metal castings:
-
Automotive castings: engine housing components,motor housing,gear box,etc.
-
Construction machinery castings: hydraulic accessories, equipment bases, connecting fittings,Machine tools ,machine base,injection machine parts
-
Pipeline and valve castings: flanges, pipe joints, pump housings and industrial valves,pipe fittings.
-
General iron castings, steel castings and custom industrial metal components

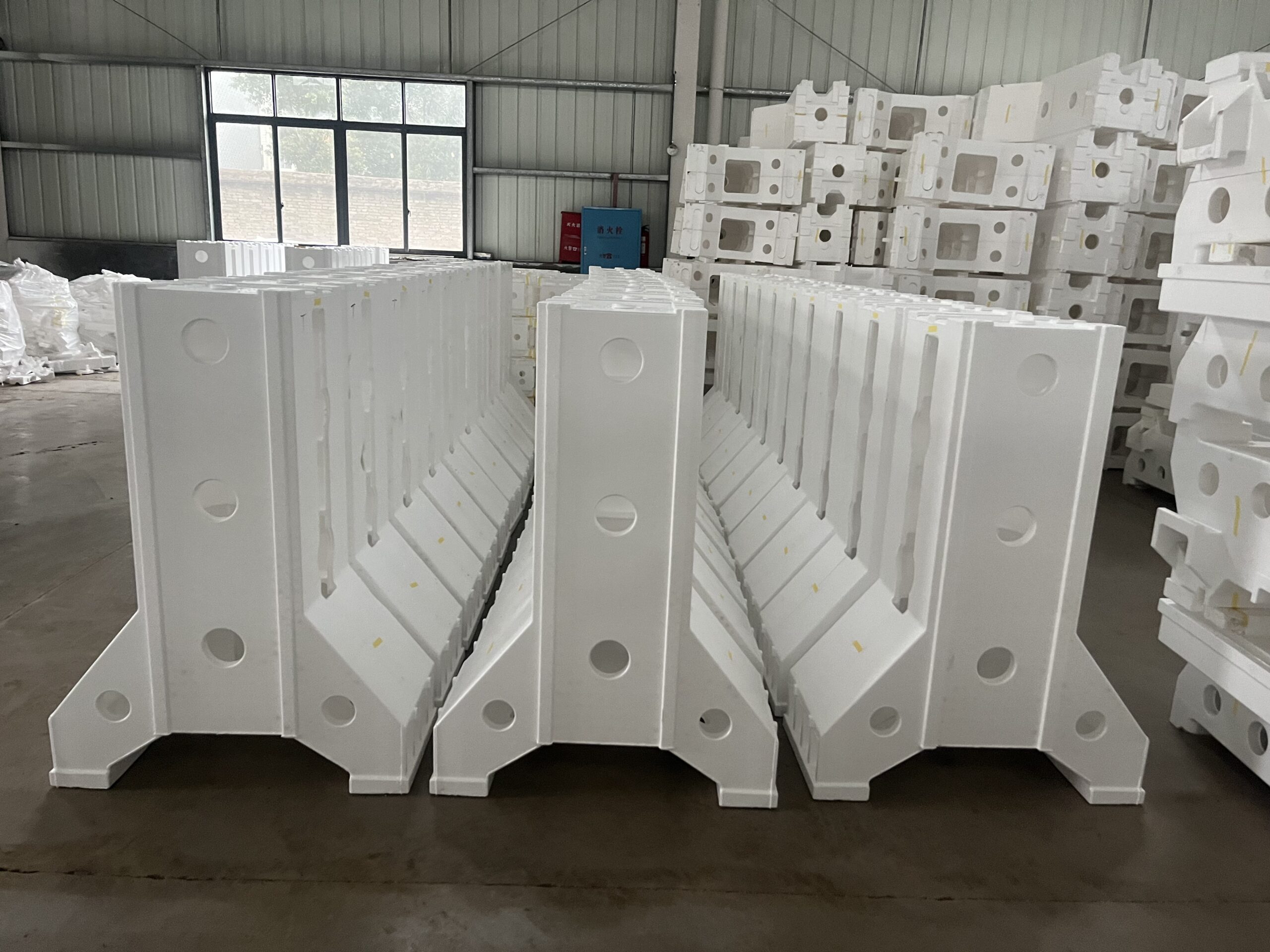

machine tools casting by lost foam

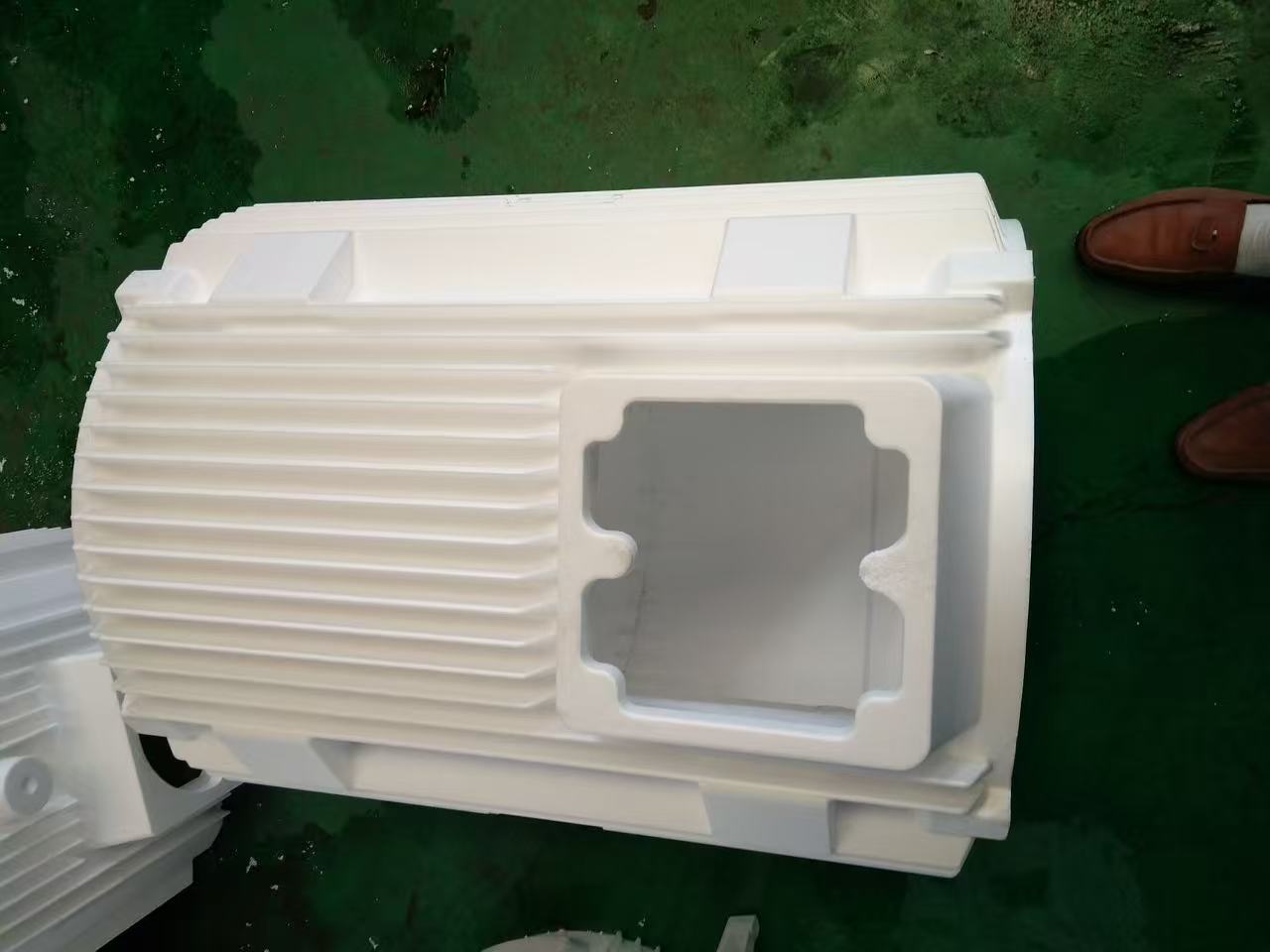

motor housing by eps Lost foam casting

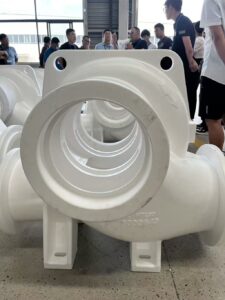

pump casting by lost foam pump casting by lost foam motor housing by eps Lost foam casting machine tools casting by lost foam
Why Source Lost Foam Casting Equipment From Us?
We focus on R&D, production and export of lost foam casting equipment and V-process casting machinery for more than 12 years. Different from ordinary trading companies, we are direct factory manufacturer, so we can offer competitive factory-direct price and professional one-stop technical support.
Besides standalone lost foam casting white part machine, our team provides free factory layout design, overseas on-site installation guidance, machine debugging and after-sales technical support. All our casting machines meet safety inspection requirements for European and American markets. Share your daily output requirement and factory size with us, and get a customized solution and free quotation promptly.
