Jolt squeeze moulding machine is important part in Green Sand casting ,or means Clay sand, using clay as a binder, is a core material in sand casting, ideal for mechanized sand treatment processes. Sand casting, one of the oldest and most widely used casting methods, produces large parts like gray cast iron, ductile iron, stainless steel, and other steels. The process involves essential steps such as painting, mold and core making, modeling, melting and pouring, and cleaning.
With extensive experience, we have successfully delivered 40 sets of clay sand/green sand foundry molding lines domestically and 18 sets internationally, ensuring proven reliability and customer satisfaction.
Features For jolt squeeze moulding machine
- Clay Sand Production Line Capacities: 20, 40, 60, 80, 100, and 120 tons.
- Flexible Configurations: Compatible with horizontal and vertical molding lines.

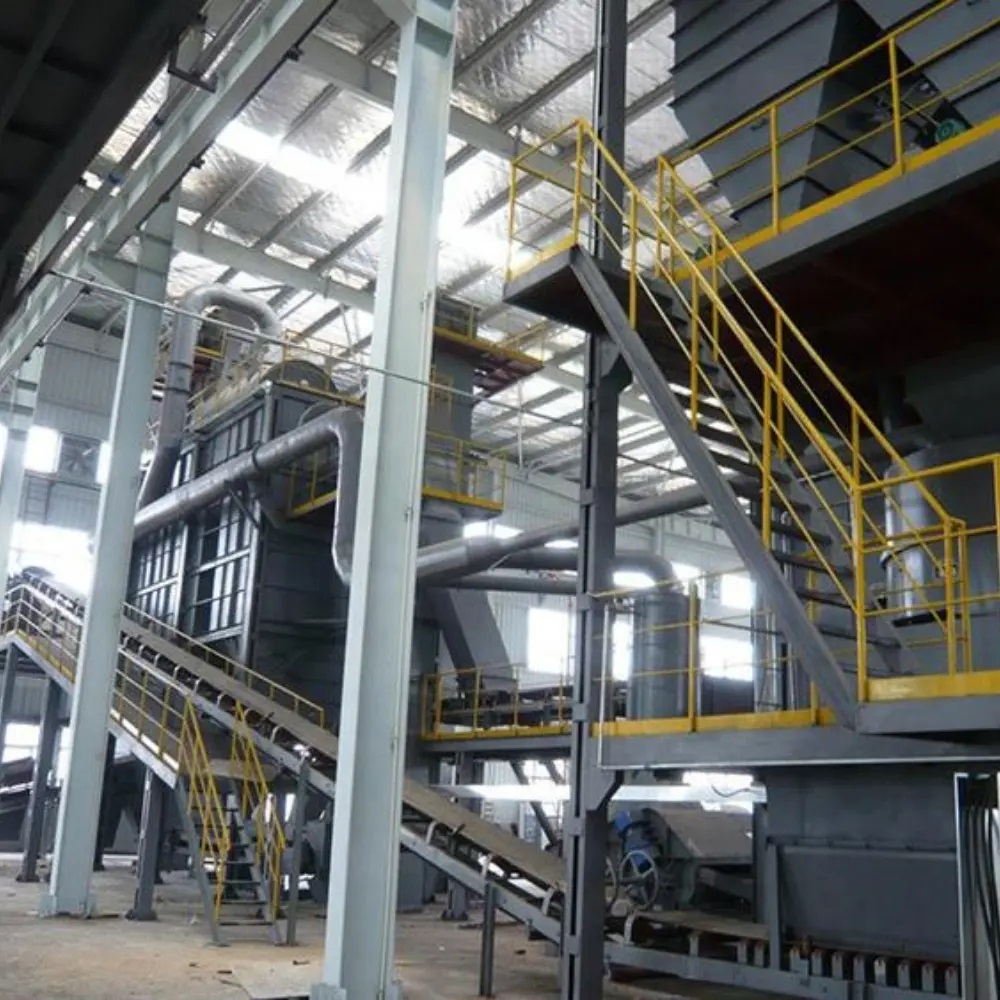

- Comprehensive Equipment: Includes vibration conveyor, cast hanging conveyor, magnetic separator, hoisting machine, boiling reclaimer, belt conveyors, sand library, hexagonal mesh, cooling beds, and more.
automatic green sand preparation system
Foundry Vertical Flaskless Sand Casting Molding Machine Highlights
- Advanced Design: Vertical parting, flaskless, fully automatic, and continuous high-speed operation for coreless small-to-medium castings.
- Superior Functionality: Front and back surface compaction with automatic cavity adjustment.
- Customizable Settings: Technical parameters are adjustable via a computer screen for precise operations.
- High-Tech Controls: Powered by microcomputer, PLC, sensors, and LCD for process stability, dynamic monitoring, fault detection, and alarms.
This line is perfect for large-scale, automated foundry operations, delivering efficiency and high-quality results for diverse casting needs.
PRODUCT SPECIFICATIONS
| Small manual semi-automatic Foundry Green Sand Jolt Squeeze Molding Machines | ||||||
| Model | Z143 | Z145W | Z146W | Z147W | Z148W | Z149W |
| Foundry flask maximum dimension (mm) | 500*400*100 | 500*450* 200mm | 600*500*200 | 650*550*250 | 800*600*300 | 1000 *800* 320 |
| Worktable dimension (mm) | 560*420 | 620*520mm | 700*550 | 750*600 | 900*730 | 1100*850 |
| Jolting load (kgf) | 250 | 300 | 300 | 400 | 600 | 800 |
| Air pressure(Mpa) | 0.5MPa | 0.6MPa | 0.6MPa | 0.6MPa | 0.6MPa | 0.8MPa |
| Compressive stress (mm) | 4000 | 6300 | 7000 | 8000 | 10000 | 15000 |
| Compress process (mm） | 100 | 160 | 160 | 200 | 200 | 250 |
| Moulding process (mm) | 160 | 200 | 200 | 220 | 350 | 350 |
| air consumption（m³/mold） | 1~1.5m³/Mold | 1~1.5m³/Mold | 1~1.5m³/Mold | 1~1.5m³/Mold | 1~2.5m³/Mold | 1~2.5m³/Mold |
| Productivity (box / hour) | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 |
| Distance compacting plate with worktable(mm) | 200-370 | 300-450 | 350-450 | 450-600 | 600-700 | 700-800 |
| Outline dimension L*W*H | 950*680*1330mm | 1200*1000*1700mm | 1400*1000*1700mm | 1200*1100*1800mm | 1800*1300*2300 | 1060*1600*2380mm |
