Our lost foam shell casting machine is a specialized integrated casting device tailored for high-quality shell mold casting production based on evaporative pattern technology. It perfectly combines the advantages of lost foam casting and precision shell mold casting, fixing the precision defects of traditional dry sand lost foam equipment and the high-cost pain points of conventional investment shell casting machines. This versatile casting machinery is also widely known as evaporative pattern shell casting equipment and foam pattern shell casting machine among global foundry manufacturers.
Designed for medium and high-end precision casting production, the lost foam shell casting machine delivers finer surface finish, tighter dimensional stability and fewer internal casting defects. It works perfectly for mass production of complex thin-wall metal parts that regular casting equipment struggles to process. As an experienced foundry equipment exporter, we offer standardized and customized shell casting machine solutions, serving automotive, hydraulic, valve and general machinery casting factories across global markets.
Working Principle & Production Flow
This automatic lost foam shell casting machine adopts mature foam pattern shell molding technology, cooperating with matched EPS pattern making equipment, refractory coating systems, shell mold curing units and vacuum pouring systems. The whole production process runs smoothly with minimal manual operation and ultra-low failure rate.
Production starts with customized EPS foam patterns that fully simulate the shape of finished metal castings. Workers apply multi-layer high-temperature refractory coating on foam surfaces, then the professional shell curing system forms a hard, high-strength integral shell mold outside the foam patterns. After thorough drying and curing treatment, the patterned shell molds go through assembly and positioning. During molten metal pouring, high temperature vaporizes the internal EPS foam patterns completely, and metal liquid fills the rigid shell mold cavity steadily without turbulence or deformation.
Once cooling and solidification finish, workers break the outer shell mold to take out finished castings. The whole process avoids binder sand pollution and size deviation caused by loose sand filling. It effectively improves the overall qualification rate of precision iron castings, steel castings and alloy castings, making it ideal for standardized batch production.
Lost Foam Investment Castings
Core Advantages of Lost Foam Shell Casting Machine
Superior casting precision and surface quality: Different from ordinary loose sand lost foam casting, this lost foam shell casting machine adopts rigid shell mold forming. It eliminates sand sticking, burrs, surface pits and dimensional deviation. Finished castings achieve near-net-shape effect, greatly reducing later grinding, polishing and CNC machining workload for foundries.
Enhanced mold stability and casting consistency: The cured refractory shell mold features high temperature resistance and strong structural stability. It never deforms under high-temperature molten metal impact, ensuring uniform size and consistent quality for every production batch. It effectively avoids batch quality fluctuation common in traditional sand casting production.
Strong adaptability for complex precision parts: This evaporative pattern shell casting equipment fits diverse difficult casting workpieces, including thin-wall parts, irregular structural components and tiny precision fittings. It supports customized production of ductile iron castings, carbon steel castings and aluminum alloy castings for multiple industrial scenarios.
Cost-effective and eco-friendly production: The shell mold casting process consumes less refractory materials than full investment casting, cutting raw material costs significantly. It requires no resin binder and produces little waste residue, with clean production procedures that fully meet international environmental protection standards for modern foundry workshops.
Simple operation and low maintenance: Equipped with intelligent PLC control panel and integrated automated workflow, the machine is easy to operate with short worker training cycles. The industrial-grade structural design ensures long-term continuous operation, with simple daily maintenance and extended equipment service life.
Wide Application Range
Our reliable lost foam shell casting machine covers extensive precision casting fields and meets diversified industrial manufacturing demands:
Automotive precision castings: Brake system parts, automobile engine accessories, chassis precision components and automotive pipeline fittings
Valve & pipeline castings: High-precision flanges, industrial valve bodies, water pump housings and special-shaped pipe fittings
General machinery castings: Custom thin-wall alloy castings, small precision steel parts and ductile iron mechanical components

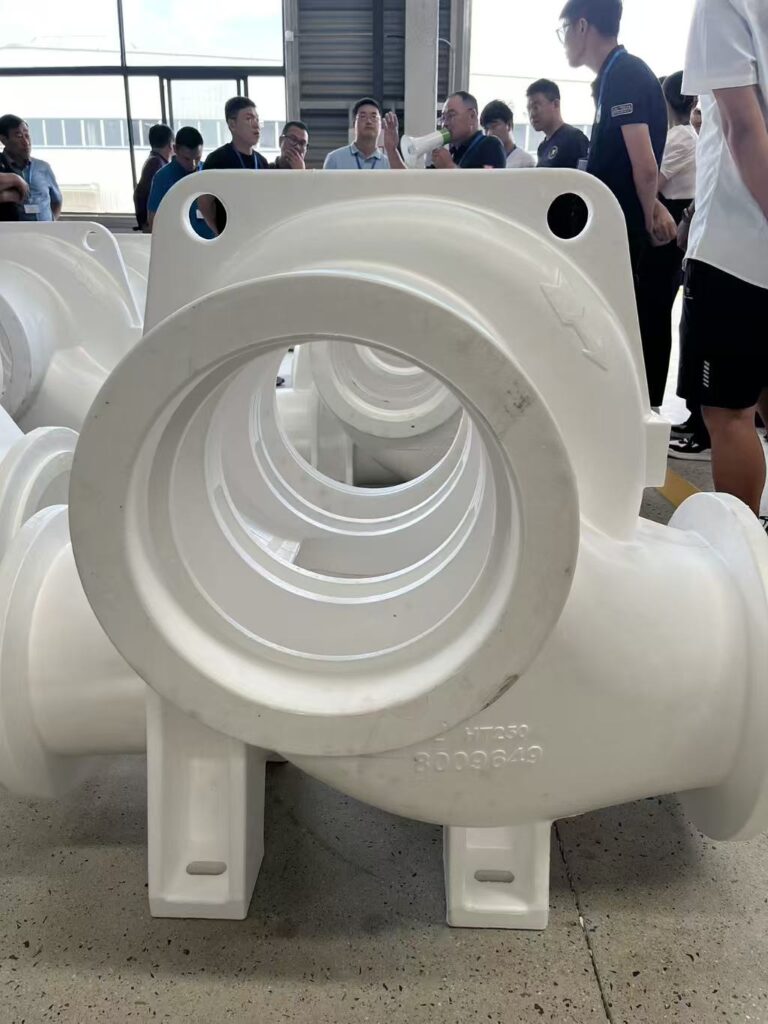

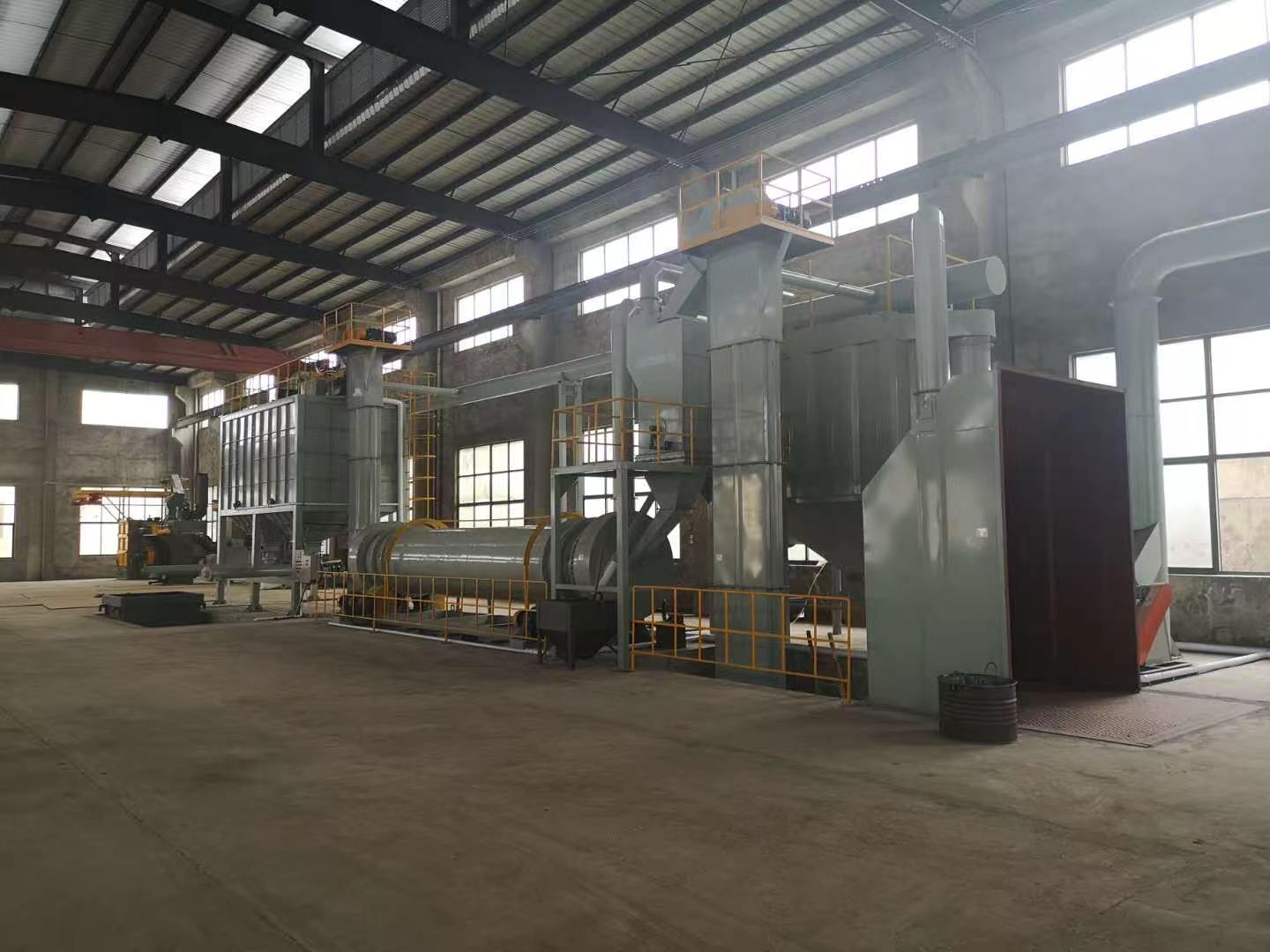

Lost Foam Investment Casting machineLost Foam Investment Castingpump casting by lost foammotor housing by eps Lost foam castinglost foam casting equipment
Why Choose Our Lost Foam Shell Casting Equipment?
We are a professional direct manufacturer specialized in lost foam shell casting machine and full-set evaporative pattern casting equipment. We integrate independent R&D, production and export, so we can provide genuine factory prices without middleman fees.
Besides standalone shell casting machines, we also support full production line customization, including foam pattern making units, coating and curing systems, pouring equipment and auxiliary processing machinery. We provide one-stop services such as factory layout design, overseas on-site installation, equipment debugging and long-term technical after-sales support. All our casting machines pass CE certification and comply with global industrial safety standards. Share your production requirements, and we will tailor the most suitable precision casting solution and free quotation for you.
