EPS Casting Machine | Automatic Evaporative Pattern Casting Equipment for Foundry
Our EPS casting machine is the core automated production equipment for modern evaporative pattern casting workshops, widely adopted by global foundries for precision metal casting production. Also known as foam pattern casting equipment and lost foam casting machinery, this full-set production line integrates all essential processing units to complete binder-free sand casting in one continuous workflow. Unlike traditional green sand casting and resin coated sand casting processes that involve complicated mould opening and core making steps, our EPS casting machine simplifies the entire casting procedure, boosts production efficiency and delivers higher precision casting results for all types of metal components.
As a professional foundry equipment manufacturer and exporter with rich overseas project experience, we tailor complete evaporative pattern casting production solutions for small, medium and large-scale foundry factories. This automatic foam casting equipment has been widely exported to dozens of countries, helping foundry owners upgrade their traditional casting lines to high-efficiency, low-consumption and environmentally friendly intelligent production systems.
Working Process of EPS Casting Machine

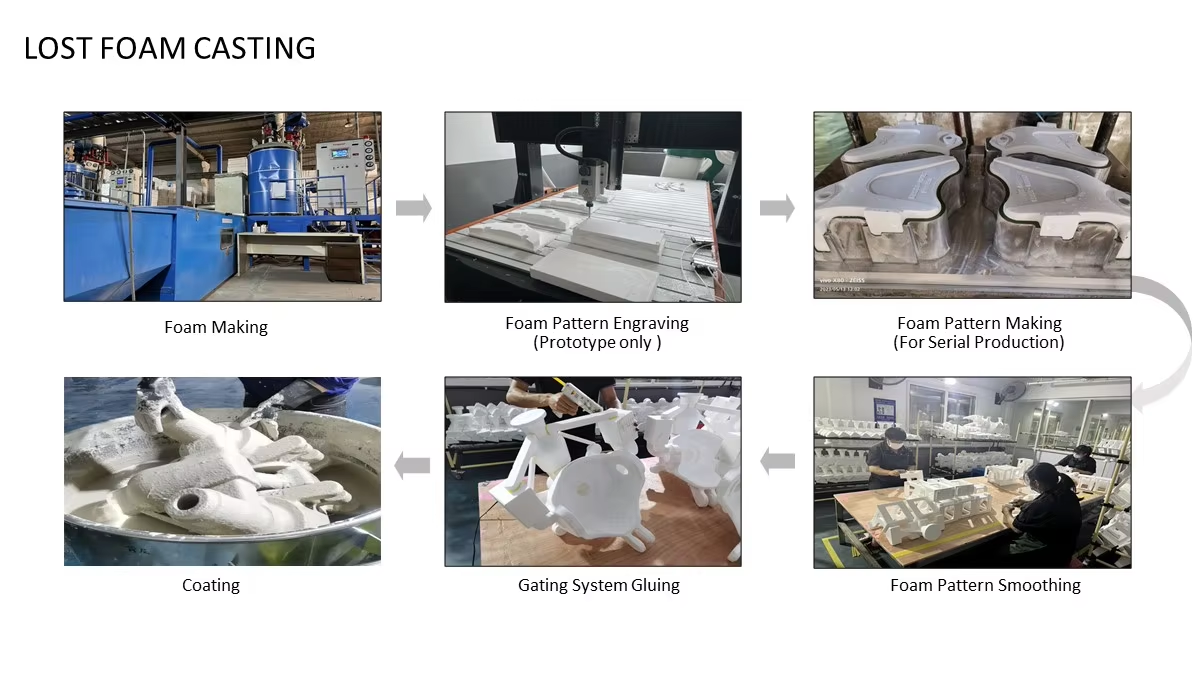

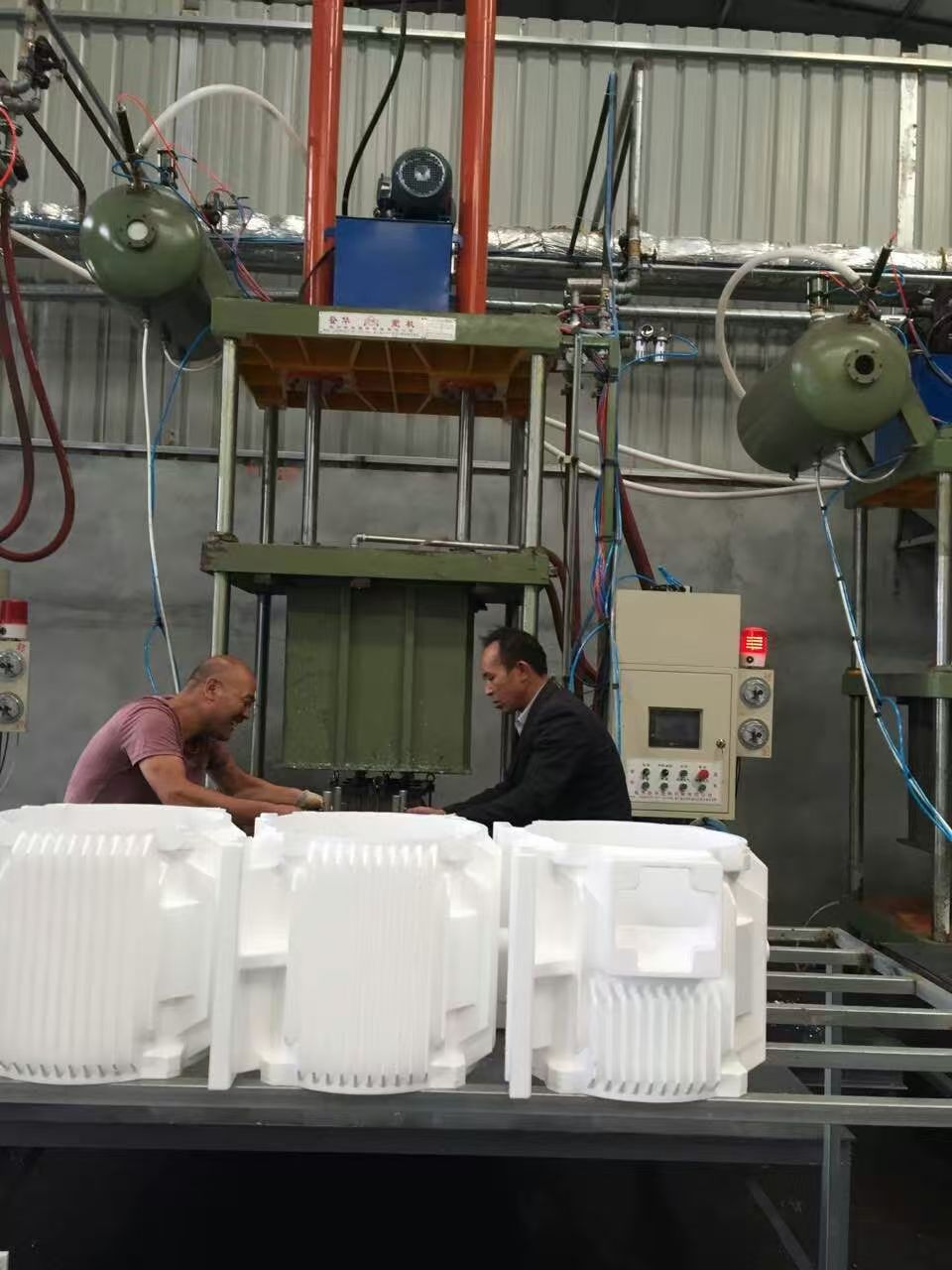

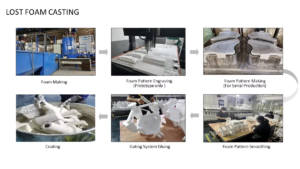

The operation of our EPS casting machine follows mature and stable evaporative pattern casting technology, cooperating perfectly with supporting EPS foam pattern making machine, pattern coating machine, automatic sand filling system and vacuum negative pressure system. The whole production flow is simple and reliable with low failure rate. First of all, customized EPS foam white patterns are manufactured according to customer product drawings, which simulate the final shape of finished castings accurately. After uniform refractory coating and constant temperature drying treatment, the qualified foam patterns are buried in dry loose silica sand without any chemical binders.
With the help of three-dimensional vibration compaction and negative pressure vacuum shaping, the dry sand forms a rigid and stable mould cavity. During pouring, high-temperature molten iron, molten steel or aluminum alloy liquid vaporizes and replaces the EPS foam patterns completely. After natural cooling and solidification, the vacuum system is released, the molding sand collapses automatically, and flawless finished castings are obtained. The matched sand reclamation equipment can recycle and reuse nearly all molding sand, realizing circular production for foundries.
Key Advantages of Our EPS Casting Machine
-
Higher precision casting quality: This EPS casting machine eliminates parting lines, flash burrs and core assembly errors common in traditional casting processes. Finished castings feature smooth surface finish, accurate dimensional tolerance and compact internal structure, effectively reducing secondary machining and polishing workload. It greatly lowers defective rate for iron castings, steel castings and aluminum alloy castings.
-
Lower production and operating costs: Adopting binder-free dry sand casting technology, the equipment saves a large amount of resin adhesive and casting auxiliary materials compared with resin sand casting lines. The recycled dry sand requires no complex regeneration processing, cutting material waste significantly. The fully automatic production structure also reduces manual operation, saving long-term labor costs for foundry enterprises.
-
Powerful production compatibility: The evaporative pattern casting equipment supports mass production of various complex-shaped and special-shaped castings that are hard to make via traditional casting methods. It covers automotive parts, engineering machinery fittings, pipeline valve castings, hardware accessories and industrial mechanical components, meeting diverse customized casting production demands.
-
Stable automated operation & easy maintenance: Equipped with industrial PLC intelligent control system, frequency conversion speed regulation system and stable vacuum system, the EPS casting machine runs continuously and stably with minimal failure. The integral thickened steel frame structure adapts to long-term high-intensity industrial production, with simple daily maintenance and ultra-long service life.
-
Eco-friendly clean casting production: Without adding chemical adhesives during the whole casting process, there is basically no harmful gas or waste residue emission. This clean casting solution fully complies with international environmental protection standards, helping foundries solve environmental inspection problems and achieve green production upgrades.
Wide Application Scenarios
Our professional EPS casting machine is widely used in mass production of high-quality metal castings across multiple industries, serving various foundry production needs:
-
Automotive foundry: Brake discs, wheel hubs, engine casings, chassis components and automotive pipe fittings
-
Engineering machinery foundry: Mechanical bases, hydraulic accessories, connecting parts and heavy equipment castings
-

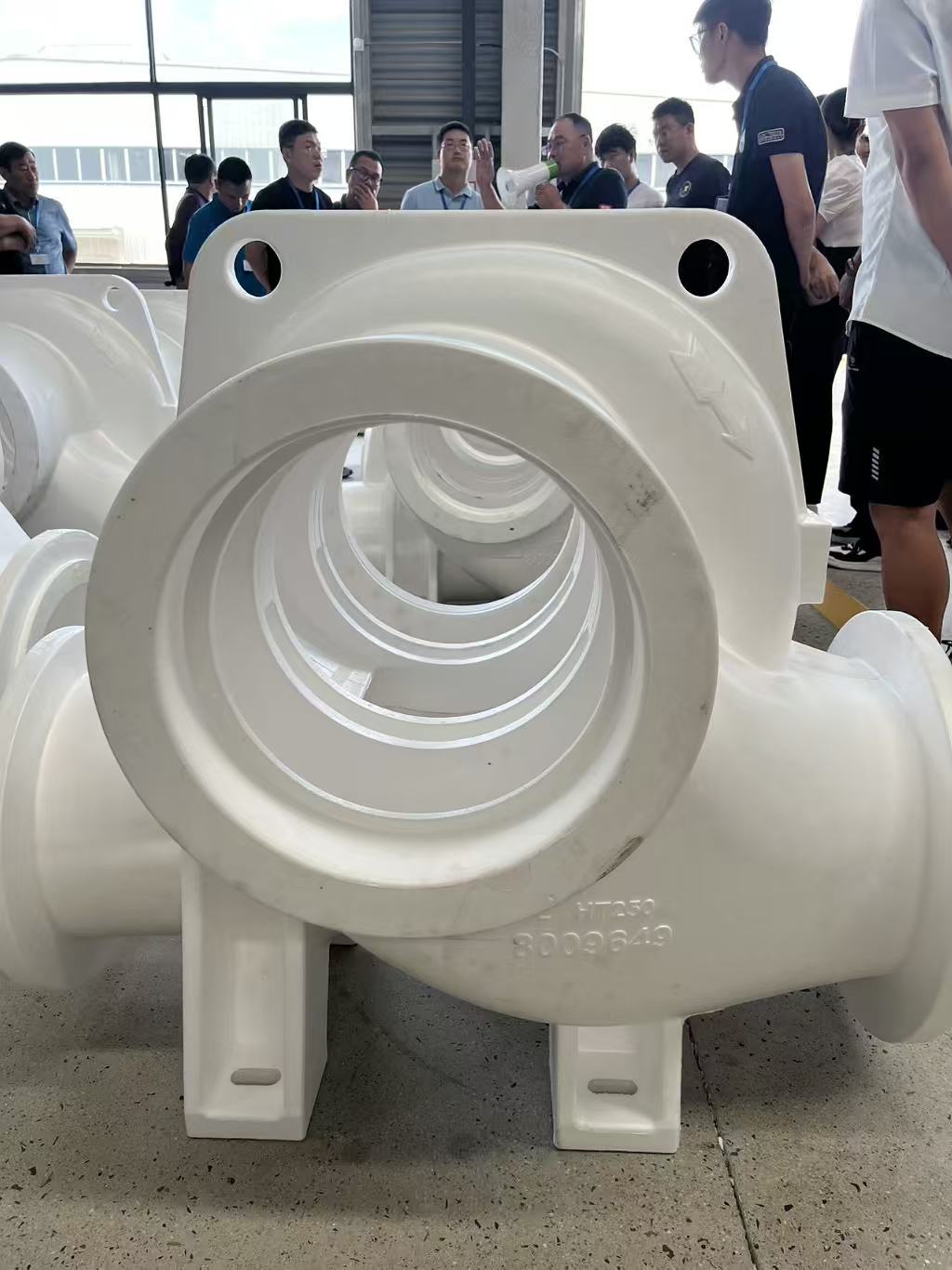

Pipeline & valve foundry: Industrial flanges, water pump housings, valve bodies and pipeline connectors
-
General industrial foundry: Custom iron castings, steel castings, aluminum alloy castings and non-ferrous metal castings
Why Partner With Us for EPS Casting Solutions?
We are a direct factory specializing in R&D, manufacturing and export of EPS casting machine and full-set lost foam casting equipment. Different from trading companies, we provide factory direct sales prices and one-stop industrial casting solutions. Apart from standalone evaporative pattern casting equipment, we also support customized full-line configuration, including foam pattern production units, drying systems, vacuum pouring units and sand treatment lines.
We provide free factory layout design, overseas on-site installation guidance, equipment debugging and long-term after-sales technical support. All our casting machinery meets CE international certification standards, suitable for global market export. if you need a small pilot casting line or a large-scale automated mass production line, we can customize the most cost-effective solution based on your factory area, daily output and budget.
