Sand Molding Flasks
The Essential Guide to Choosing the Right Tool for Your Foundry
1. What is a Sand Molding Flask?
Sand molding flasks (also called a casting flask) is a metal frame used to contain compacted sand during mold creation. These reusable containers come in two main parts:
- Cope: The top half of the flask
- Drag: The bottom half of the flask
Key Purpose:
✔ Maintains mold shape during pouring
✔ Provides proper alignment of mold halves
✔ Withstands molten metal pressure
2. Types of Sand Molding Flasks
By Material
| Type | Best For | Pros | Cons |
|---|---|---|---|
| Cast Iron | High-volume production | Extremely durable | Heavy |
| Steel | Precision casting | Good dimensional stability | More expensive |
| Aluminum | Prototyping/jobbing shops | Lightweight | Less durable |
By Design
- Snap Flasks: Removable frames for quick mold extraction
- Solid Flasks: Permanent frames for large castings
- Jacketed Flasks: Insulated designs for better temperature control

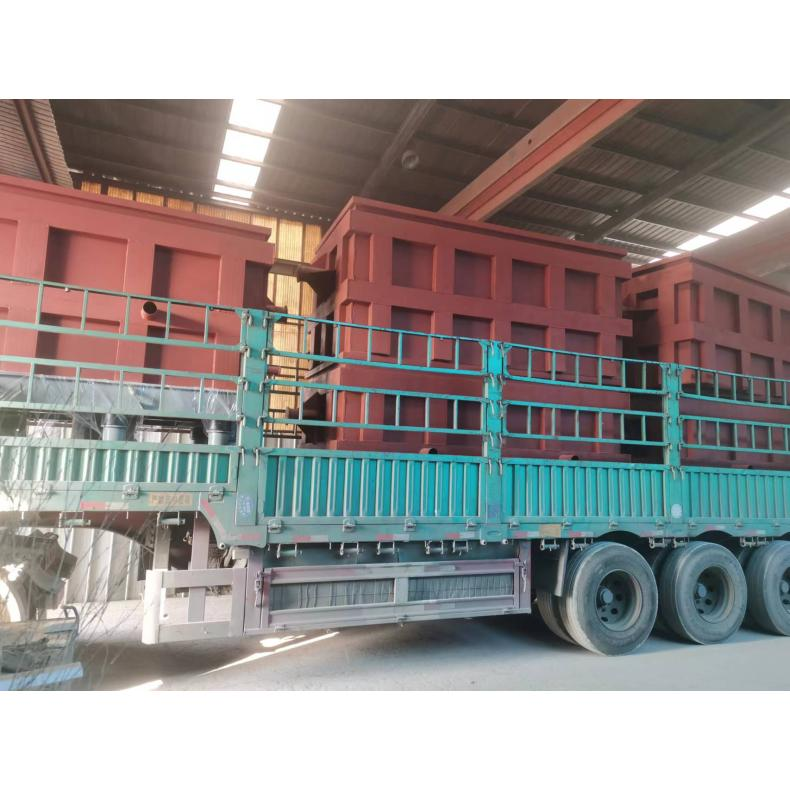

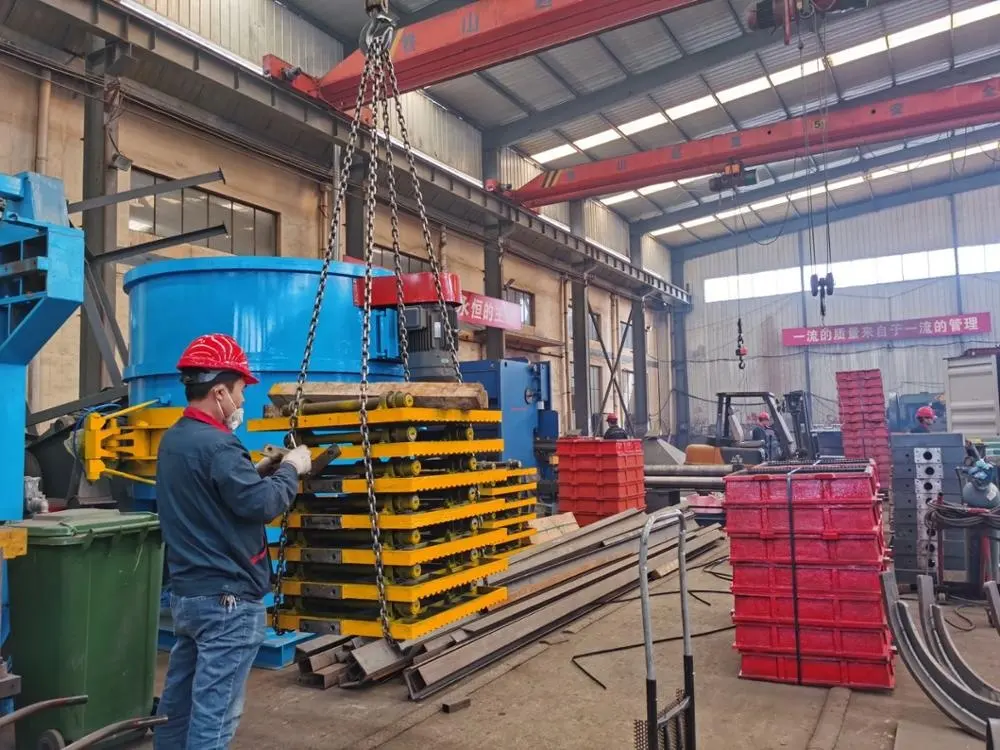

Sand Molding Flasks
3. Critical Selection Factors
① Size Considerations
- Must accommodate your largest pattern with 2-4″ clearance
- Standard sizes range from 12″x12″ to 36″x48″
② Key Features to Look For
- Precision-machined alignment pins (minimum 2 per flask)
- Reinforced corners for durability
- Vent holes for proper gas escape
- Lifting lugs for safe handling
Pro Tip: For automated lines, choose flasks with robotic handling notches.
4. Maintenance Best Practices
Daily Care:
- Inspect for cracks or warping
- Clean residual sand from pins/sockets
- Lubricate alignment mechanisms
Monthly Maintenance:
- Check pin/socket wear with go/no-go gauge
- Measure frame squareness
- Test clamping pressure
Annual Service:
- Re-machine worn surfaces
- Replace damaged components

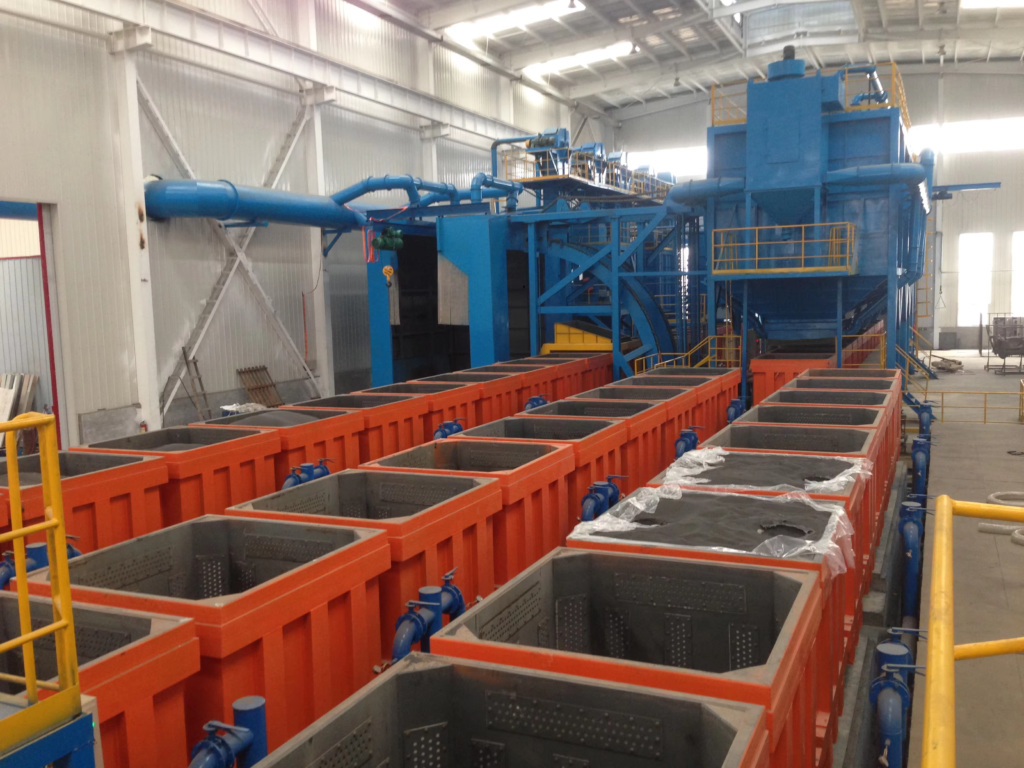

Sand Casting Mould Boxes
5. Common Flask Problems & Solutions
| Problem | Cause | Fix |
|---|---|---|
| Mold shift | Worn alignment pins | Replace pins & bushings |
| Sand sticking | Rough interior surfaces | Polish or line with release film |
| Frame distortion | Over-tightening clamps | Retrain operators on proper torque |
6. Industry-Specific Recommendations
Automotive Castings:
- Use steel snap flasks for high-volume engine parts
- Implement RFID-tagged flasks for traceability
Art Bronze Foundries:
- Aluminum flasks work well for one-off sculptures
- Consider wooden flasks for oversized pieces
Precision Investment Casting:
- Opt for jacketed flasks with thermal controls
- Use magnetic clamping systems
7. Why Choose KW Casting Flasks?
Our flasks stand out because we:
✅ CNC-machine all critical surfaces to ±0.01″ tolerances
✅ Offer custom sizes up to 60″x60″
✅ Provide lifetime technical support
✅ Include free operator training with purchase
Need Help Selecting?
Our engineers will analyze your:
- Casting dimensions
- Production volume
- Metal type (iron, aluminum, etc.)
