1. What is a Sand Casting Mould Box?
Sand casting mould boxes (also called a flask) is a rigid frame that holds compacted sand in place during metal casting. It consists of:
- Cope (top half)
- Drag (bottom half)
- Cheek (middle section for complex parts)
Key Functions:
✔ Contains the sand mould
✔ Ensures proper alignment of mould halves
✔ Withstands molten metal pressure
2. Types of Sand Casting Mould Boxes By Design
| Type | Best For | Pros | Cons |
|---|---|---|---|
| Snap Flask | Small/medium castings | Quick mold removal | Limited durability |
| Solid Flask | Large/heavy castings | Extremely sturdy | Heavy & expensive |
| Tapered Flask | Automated foundries | Easy stacking | Specialized use |
By Material
- Cast Iron: Most durable for high-volume production
- Steel: Precision work, long lifespan
- Aluminum: Lightweight for prototyping
3. How to Choose the Right Mould Box
① Size Matters
- Add 50-100mm clearance around your pattern
- Standard sizes: 300x300mm to 1200x1500mm
② Critical Features
✅ Precision-machined alignment pins
✅ Reinforced corners
✅ Vent holes (1 per 100mm²)
✅ Lifting lugs for safety
Pro Tip: For automated lines, choose boxes with:
- Robotic handling notches
- Quick-release mechanisms
4. Maintenance Checklist
Daily:
- Inspect for cracks/damage
- Clean sand from pins & sockets
- Check alignment
Monthly:
- Measure box squareness
- Test clamp pressure
- Lubricate moving parts
Annually:
- Re-machine worn surfaces
- Replace damaged components

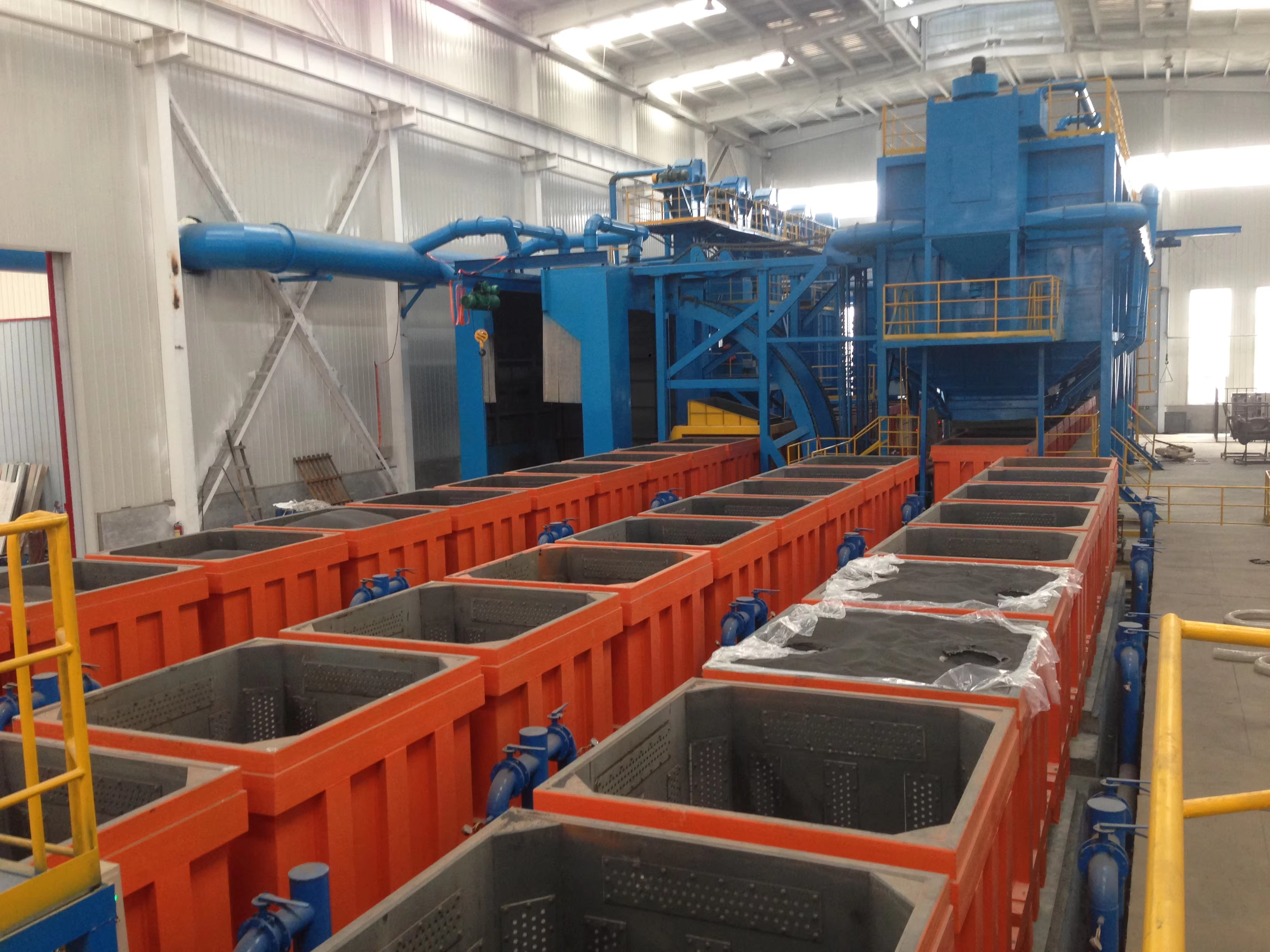

Lost Foam Molding production line
5. Troubleshooting Common Issues
| Problem | Likely Cause | Solution |
|---|---|---|
| Mismatched halves | Worn pins | Replace alignment system |
| Sand sticking | Rough surfaces | Polish or line with release agent |
| Box warping | Overheating | Allow cooling between uses |
6. Industry-Specific Recommendations
Automotive Parts:
- Use steel solid flasks
- Implement barcode tracking
Art Castings:
- Aluminum snap flasks
- Wooden boxes for large sculptures
High-Precision Work:
- Magnetic clamping systems
- Temperature-controlled boxes
7. Why Our Mould Boxes Stand Out
✅ Precision Engineering: ±0.5mm tolerance
✅ Custom Sizes: Up to 2m x 2m available
✅ Durability: 2x industry standard lifespan
✅ Support: Free technical consultations
Need Help Selecting?
Our experts can recommend the perfect box for your:
- Casting size
- Production volume
- Metal type
