Green Sand Moulding Flasks
The Foundry’s Essential Tool for Quality Castings

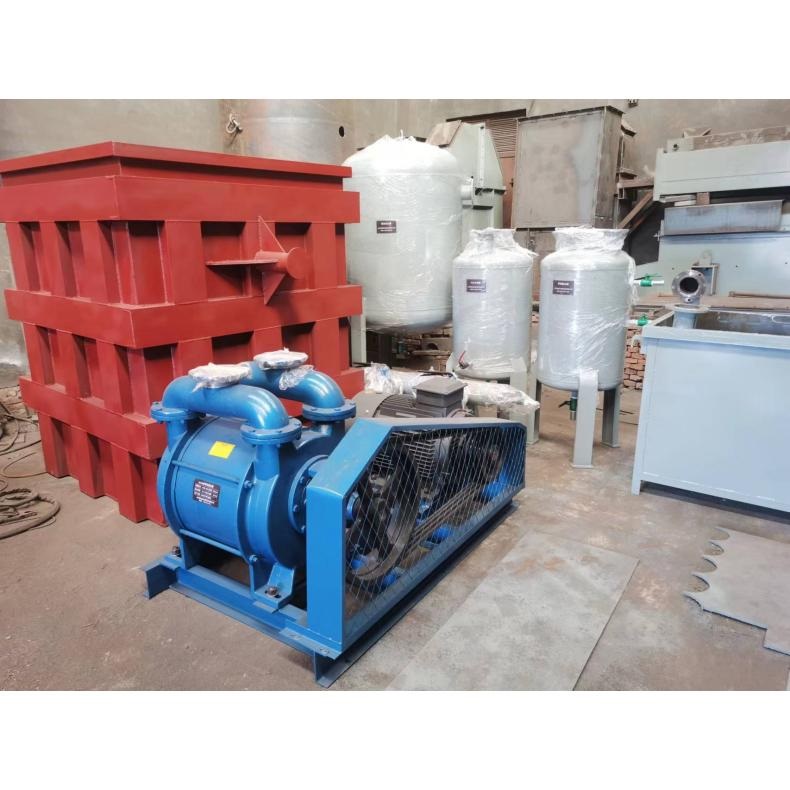

1. Understanding Green Sand Moulding Flasks
Green Sand Moulding Flasks -What is it?
A green sand moulding flask is a specialized frame used to contain and shape moist sand mixtures (clay, sand, water) during metal casting.
Key Components:
- Cope (upper frame section)
- Drag (lower frame section)
- Alignment System (pins/bushings for perfect registration)
Why “Green”?
Refers to the moist sand condition – not the color!
2. Green Sand Moulding Flask Types Comparison
By Construction
| Type | Best For | Advantages | Limitations |
|---|---|---|---|
| Wooden | Prototyping | Low cost, easy modification | Short lifespan |
| Cast Iron | High production | Extreme durability | Very heavy |
| Steel Fabricated | General use | Good balance of weight/strength | Moderate cost |
| Aluminum | Jobbing shops | Lightweight | Less durable |
By Function
- Snap Flasks: Quick-release for small/medium castings
- Solid Flasks: Heavy-duty for large castings
- Tapered Flasks: Automated production lines

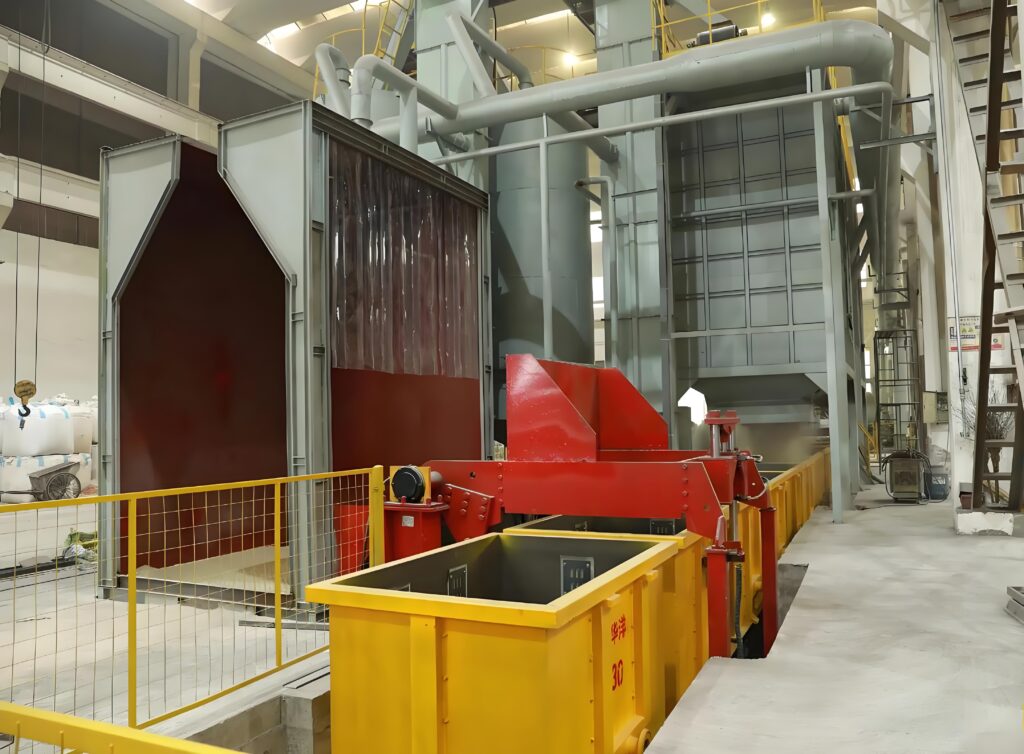

Green Sand Moulding Flasks
3. Selecting the Perfect Green Sand Moulding Flask
Size Guidelines:
- Minimum 50mm clearance around pattern
- Common sizes: 400×400mm to 1500×2000mm
Must-Have Features:
✔ Precision-ground alignment pins (hardened steel)
✔ Reinforced corner joints
✔ Proper venting (1 vent per 100cm²)
✔ Ergonomic lifting points
Special Applications:
- Automated Lines: Robotic locator notches
- Large Castings: Removable side panels
4. Maintenance Protocol
Daily:
- Inspect for sand buildup in pin bushings
- Check frame squareness
- Clean contact surfaces
Weekly:
- Measure pin/bushing wear
- Verify clamping pressure
- Lubricate moving parts
Annual:
- Complete disassembly inspection
- Re-machine worn surfaces
5. Troubleshooting Guide
| Issue | Probable Cause | Solution |
|---|---|---|
| Mould shift | Worn pins/bushings | Replace alignment system |
| Sand sticking | Rough interior | Polish or apply release agent |
| Frame distortion | Over-clamping | Retrain operators |
| Poor venting | Clogged vents | Clean with compressed air |
6. Industry-Specific Recommendations
Automotive Castings:
- Steel solid flasks with RFID tags
- Standardized sizes for production lines
Art Foundries:
- Aluminum snap flasks
- Custom sizes for unique pieces
Pump/Turbine Parts:
- Extra-heavy flasks (50mm+ wall thickness)
- Double alignment systems
7. Why Our Flasks Deliver Better Results
Engineering Excellence:
- ±0.25mm alignment tolerance
- Stress-relieved frames prevent warping
Durability Features:
- Hardened wear plates at contact points
- Reinforced high-stress areas
Custom Solutions:
- Sizes up to 2500×2500mm
- Special alloys for corrosive environments
Need Expert Advice?
Our engineers will help you select flasks for:
- Your specific casting size
- Production volume needs
- Metal type being poured
