3D Print Lost Foam Casting Machine
The Future of Rapid Metal Prototyping & Production
1.3D Print Lost Foam Casting Machine Core Technology:
3D Print Lost Foam Casting Machine Combining additive manufacturing with traditional lost foam casting to produce complex metal parts with unprecedented speed and precision.
Key Advantages:
✔ 85% faster pattern production vs CNC machining
✔ 70% cost reduction for low-volume batches
✔ 0.1mm accuracy for precision components
Industry Applications:
- Automotive: Engine blocks, transmission cases
- Aerospace: Turbine components, structural parts
- Medical: Implant prototypes, surgical tools

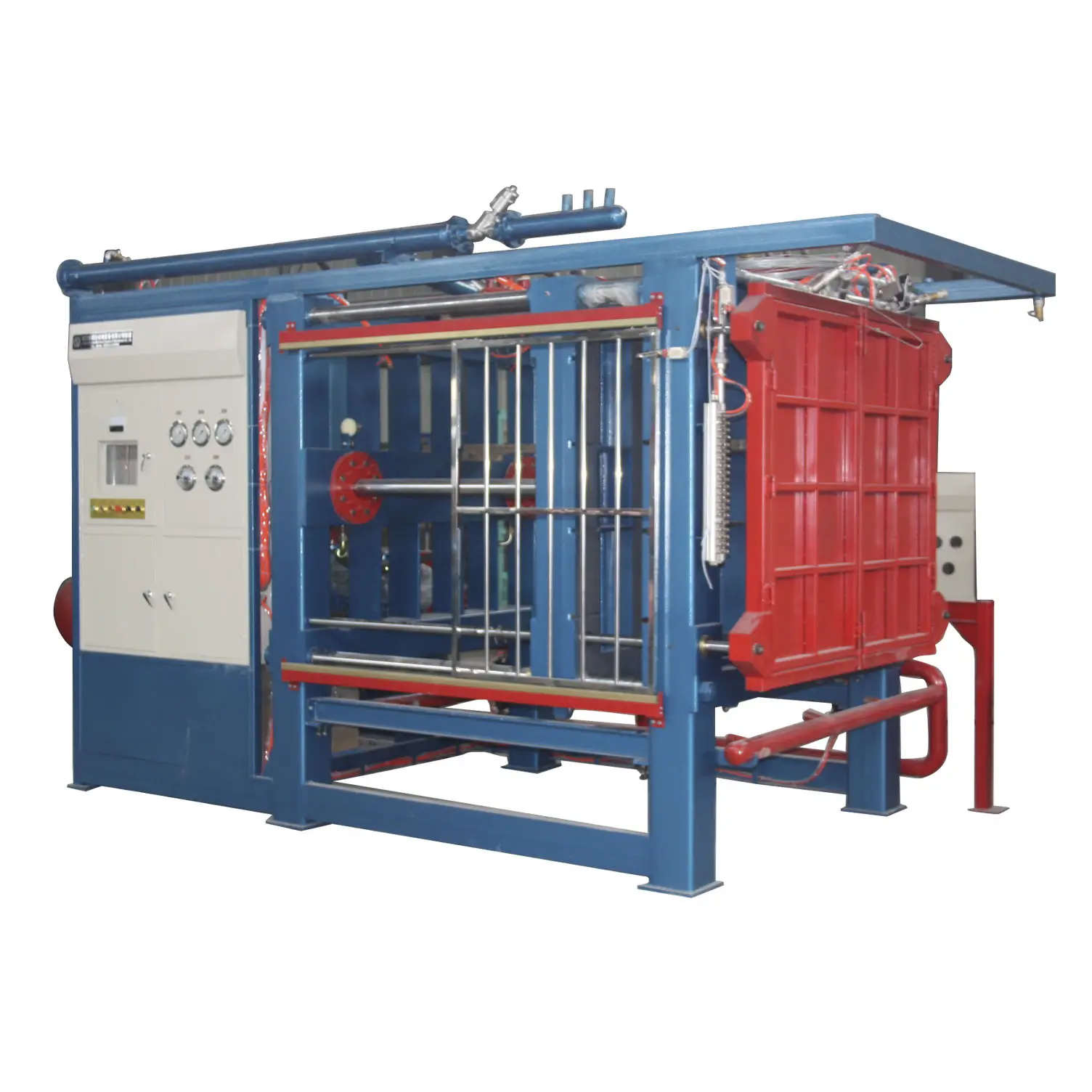

3D Print Lost Foam Casting Machine
2. How 3D Printed Lost Foam Patterns Work
Process Flow:
- CAD Design → 2. 3D Printing (EPS/STMMA) → 3. Pattern Assembly → 4. Ceramic Coating → 5. Sand Casting
Material Options:
| Material | Best For | Key Properties |
|---|---|---|
| EPS | General use | Excellent vaporization |
| STMMA | Steel castings | Low carbon residue |
| EPMMA | Aluminum | Superior surface finish |
3. Choosing the Right 3D Printing Technology
Comparison of Printing Methods:
| Technology | Speed | Accuracy | Best For |
|---|---|---|---|
| FDM | Fast | 0.2mm | Large patterns |
| SLS | Medium | 0.1mm | Complex geometries |
| Binder Jetting | Very Fast | 0.3mm | High-volume production |
Key Specifications:
- Build Volume: Up to 2000×1000×1000mm
- Layer Height: 0.1-0.3mm
- Throughput: 10-100kg/day
4. Integrating 3D Printing with Casting Operations
Essential Equipment for Hybrid Production:
- Automated Coating Systems: For uniform ceramic shell application
- Vibration Compaction Tables: Ensure perfect sand packing
- Vacuum Casting Systems: For defect-free metal filling
Software Solutions:
- Magics for file preparation
- Simulation tools for gating system design
- Quality control analytics
5. Cost Analysis: Traditional vs 3D Printed Patterns
Side-by-Side Comparison:
| Factor | CNC Machining | 3D Printing |
|---|---|---|
| Lead Time | 4-12 weeks | 2-7 days |
| Tooling Cost | 3,000−50,000 | $0 |
| Design Changes | Expensive & slow | Instant & free |
ROI Example:
An automotive supplier reduced prototype costs by 65% and accelerated development by 8x using our 3D print lost foam casting solution.
6. Why Choose KW Casting’s 3D Print Lost Foam Solutions
✅ Turnkey Systems: From design to finished castings
✅ Material Expertise: Custom formulations for your alloy
✅ Global Support: Installation, training, and maintenance
Explore Our 3D Print Lost Foam Solutions →
